Exhaust Cutout

3.0 Inch Dual Weldable Vacuum Pump Electric Exhaust Cutout Valve Cutout

This is the second generation of electric Exhaust Cutout systems. It is designed and used to enhance the performance, sound, and power of vehicles with the flip of the toggle switch. Designed to be conveniently welded onto anywhere from the cutout location from the header to the exhaust pipe of vehicles.

Model number	ES00860S3.0
Description	Vacuum Exhaust Cutout Kit
EXW Price	US $68
Size	2.5″
Material	304 stainless steel and aluminum alloy
Car model	Universal
Min.Order Quantity	10 set
Weight	4200g
Package	Individual package
Payment Terms	T/T，L/C
FOB Port	Ningbo

GET A QUOTE CONTACT US

Details

Material Type: Stainless Steel
Mounting Position: Medium
Part Number: ES00860S3.0
Size: 3.0 inch
Feature: Adjust sound
Weight: 4.2kg
Battery: 2Pcs CR2016 / 1Pcs CR2032
Voltage: DC 12v-24v
Control: Remote Control
ValveType: Vacuum Valve

ODM services available Vacuum Exhaust Cutout Kit
Competitive OEM factory Vacuum Exhaust Cutout Kit
Sample-based customization Vacuum Exhaust Cutout Kit

Package Include

As pictures showed

Compared to the old Electric Exhaust Cutout, the new Electric Exhaust Cut Out Kit with a vacuum pump has earned more positive feedback than ever before. Great changes Reflected in the following respects.
* The Vacuum valve installed At the bottom of the car is waterproof and can be used normally in a bad environment.
* The principle of the vacuum valve makes sure it is more durable as the electric motor will be damaged by friction, while the vacuum valve controls the switch of the valve slice by air pressure.

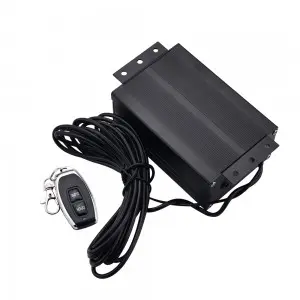

* We designed an air pump box and add signal lines which strengthen the contact between the remote and control box
* A separate vacuum pump controller is easy to connect. Don’t need to connect to the car’s vacuum pump to avoid damage to the car air pump.

Note

1) When you use this kit, the vacuum pump valve will work every 140 seconds to check whether there is air leakage or not. So if you found the valve is closed by itself, you need to check the rubber hose and Vacuum valve if it leaks.
2) Remember the high temperature will destroy rubber hose so keep it away from the exhaust pipe when installing it.
3) The Air pump box is suggested to install in the car interior which can help it use longer.
4) Professional Installation is Highly Recommended (No Instruction Included)

Product Pictures

Please see our Return and Warranty policies for more information. If you have any questions, please contact us .

TRADE TERMS	EXPRESS COMPANY	TRANSPORTATION	TIME-BASED	CN
DAP	UPS	BY EXPRESS	5-8 W/D	WORLDWIDE
DAP	TNT	BY EXPRESS	5-8 W/D	WORLDWIDE
DAP	DHL	BY EXPRESS	5-8 W/D	WORLDWIDE
DAP	FEDEX	BY EXPRESS	5-8 W/D	WORLDWIDE
DDP	CARGO	BY SEA	20-30 W/D	AMERICAN
DDP	CARGO	BY AIR	12-15 W/D	AMERICAN
DDP	CARGO	BY SEA	20-30 W/D	CANADA
DDP	CARGO	BY AIR	12-15 W/D	CANADA
DDP	CARGO	BY SEA	35-45 W/D	ENGLAND
DDP	CARGO	BY TRAIN	35-45 W/D	ENGLAND
DDP	CARGO	BY SEA	35-45 W/D	POLAND
DDP	CARGO	BY TRAIN	35-45 W/D	POLAND
DDP	CARGO	BY TRAIN	35-45 W/D	GERMANY
DDP	CARGO	BY TRAIN	35-45 W/D	FRANCE

For above，it is just a reference for the delivery timeliness of customers with urgent business needs.
In addition, we also support FOB, CIF and other any transaction methods, it sure depends on your business model.
Welcome contact with us for more details.
